Automatic Cocoa Butter Extraction Machine PLC Control

Description

This automatic cocoa butter extraction machine is a hydraulic box press for hydraulically pressing cocoa paste into cocoa butter and cocoa cakes with different residual cocoa butter contents. The cocoa cake is then processed into cocoa powder. The cocoa oil press is an important equipment for producing low-fat cocoa powder. The electronic control system of the whole pressing system adopts intelligent PLC control and fully automatic operation.

Cocoa Butter Extraction Process:

Cocoa Bean Roasting – Peeling – Grinding – Cocoa Liquor Homogenization – Cocoa Liquor Pump Feeding – Cocoa Liquor Hot Pressing – Cocoa Butter – Cocoa Cake Crushing – Cocoa Powder

Structural Features of Cocoa Butter Extraction Machine:

• The charging system and pressing system of the hydraulic press use separate and independent pressing boxes.

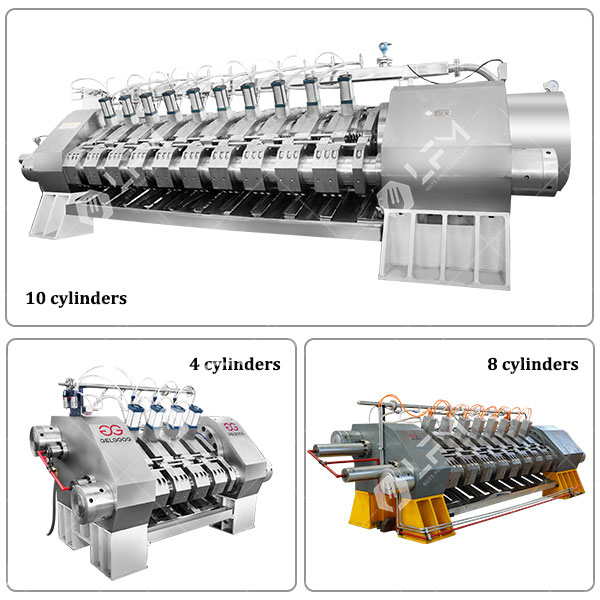

• The pressing box adopts a combined method, and the number of pressing boxes can be freely selected from 4 cylinders to 12 cylinders according to production needs.
• The squeeze box adopts a unique filtering structure, which can realize automatic filtering without using filter cloth.
• The hydraulic pump valve system used in the hydraulic system, the ultra-high working pressure and the unique “end face oil” method, the solid-liquid separation of materials is more thorough.
• The electronic control system adopts intelligent PLC control system.

Advantages of Automatic Cocoa Butter Extractor:

• The oil outlet method is improved to “end face oil outlet”, the oil outlet path is shorter, and the oil outlet efficiency is higher.
• Ultra-high working pressure: the system pressure can reach up to 55MPa, and the material pressure can reach up to 90MPa, which can realize the production of low-fat cocoa powder.
• Automatic filtration, no need to manually use filter cloth and manually produce cake.
• The rear end of the cocoa butter extraction machine is equipped with a discharge cake conveying device, which realizes the functions of feeding, extracting and discharging.
• PLC control system, intelligent and fully automatic operation from feeding, extracting, discharging and conveying.
• Programmable press control: Variable pressing conditions match cocoa cakes (cocoa powder) with different fat content.
• High performance radial piston pump with stable extraction process.
• Save labor: one person can operate multiple machines.

Parameter of Automatic Cocoa Butter Extraction Machine
